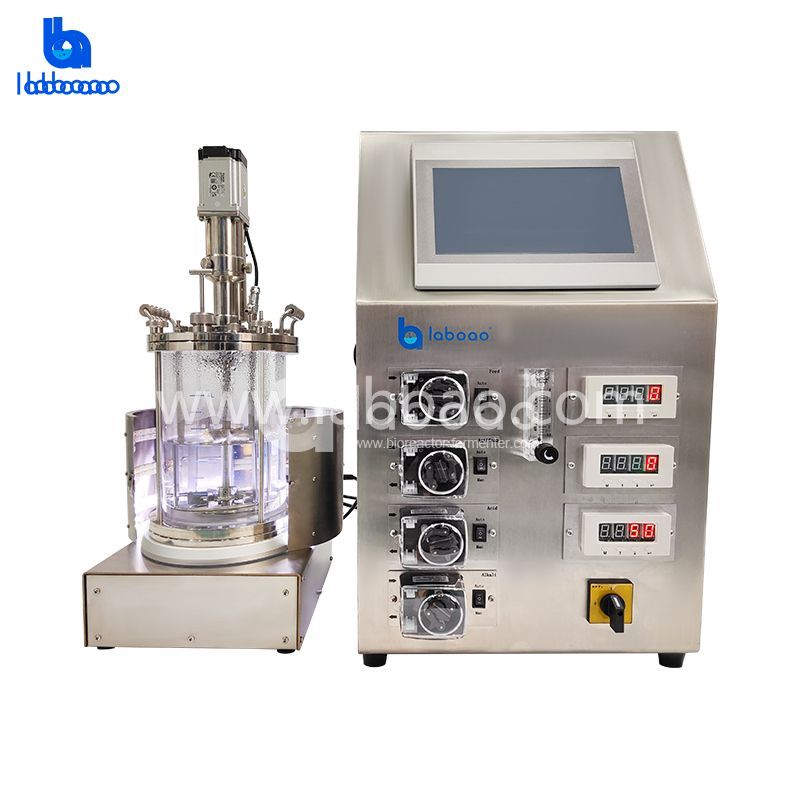

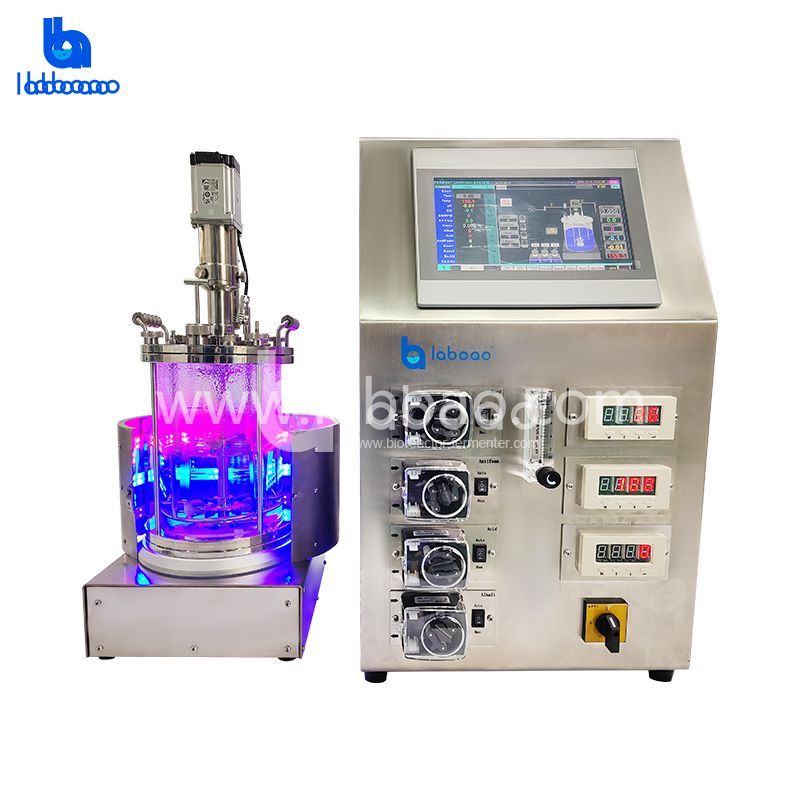

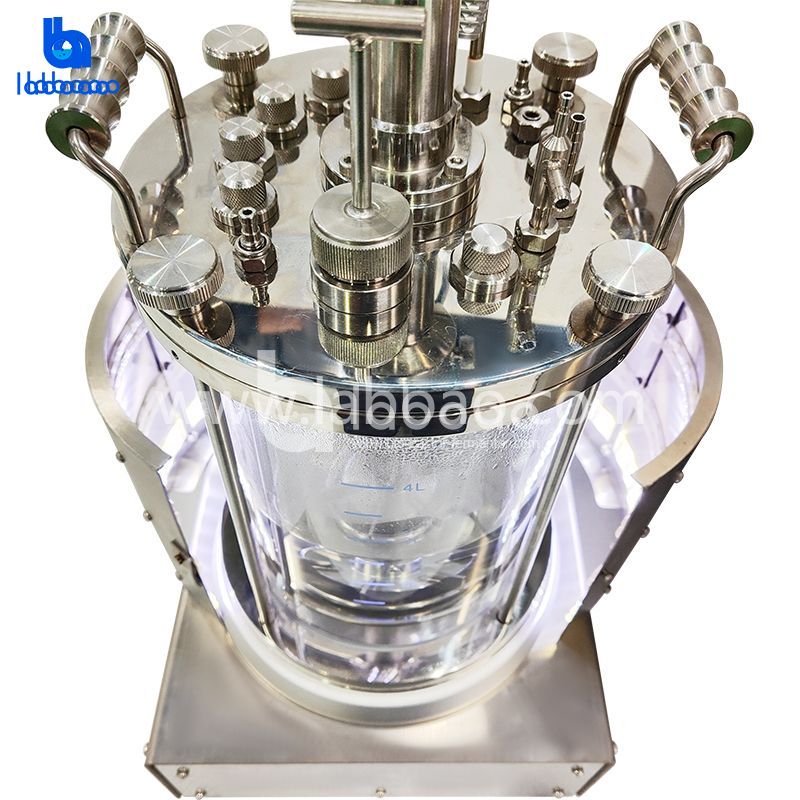

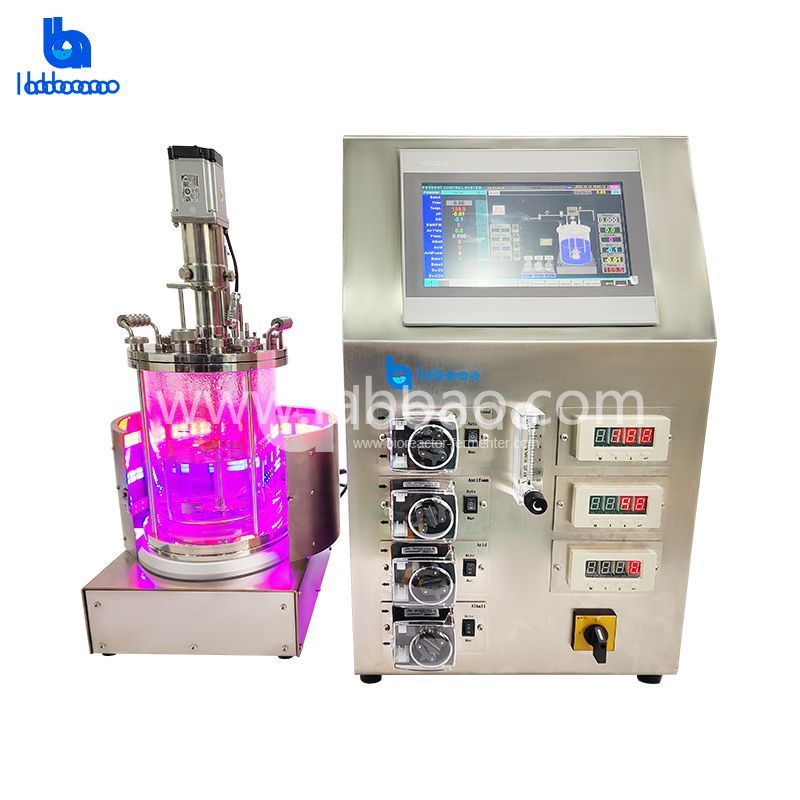

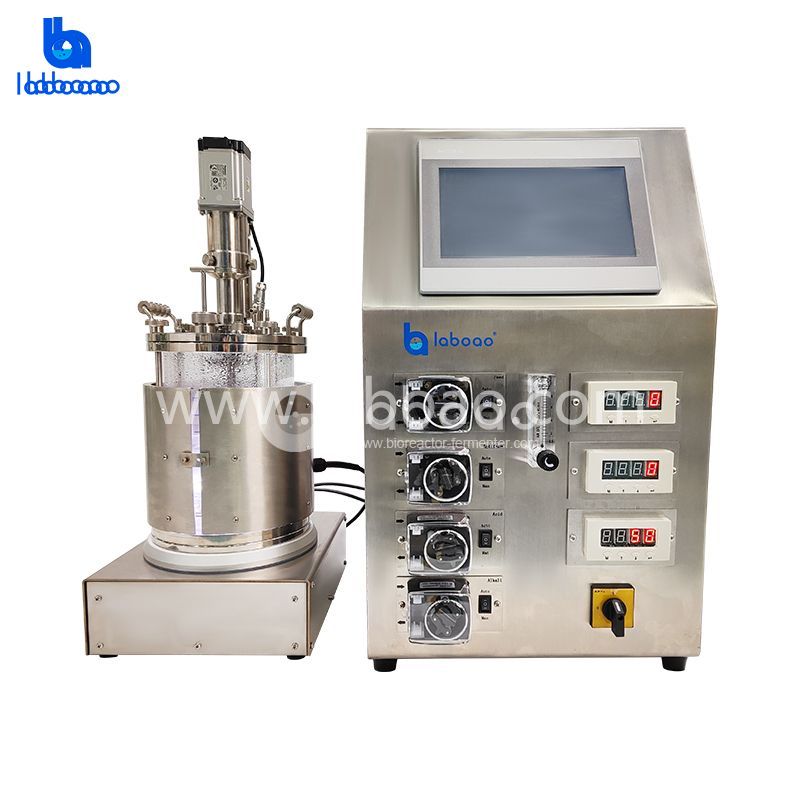

Glass Illumination Bioreactor

VIDEO

OVERVIEW

The LBR -XGJG illumination glass biological fermentation system uses a color touch screen to display all measured values and control parameters, which greatly facilitates the user's operation. Four peristaltic pumps are installed on the front of the control box to add acid, alkali, defoamer and culture medium to the fermenter. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated into the fermentation system.

FEATURES

1. It is provided with specially designed low position cooling jacket and outer casing type light source to ensure the transmission effect of lighting. The light intensity can be adjusted freely according to the percentage, it can simulate various lighting modes, such as day and night alternation.

2.  It has various types of mixing paddles for selection such as flat paddle, bevel paddle and turbine paddle.

3. Siemens PLC control system + vinylon LCD touch screen, is used to display all measured values and control parameters, which greatly facilitates the user's operation. you can use USB for data transmission, sampling and displaying tank data, browsing and analyzing system data, reading settings.

4. Each tank is equipped with 4 peristaltic pumps beside the front tank, which can supply acid, alkali, defoamer and culture medium to the fermentation tank.

5. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer.

6. The structure is compact, and various components can be integrated into the fermentation system.
